@@ -0,0 +1,305 @@
|
|
|
+/*
|
|
|
+ * LEDs driver for GPIOs
|
|
|
+ *
|
|
|
+ * Copyright (C) 2007 8D Technologies inc.
|
|
|
+ * Raphael Assenat <raph@8d.com>
|
|
|
+ * Copyright (C) 2008 Freescale Semiconductor, Inc.
|
|
|
+ *
|
|
|
+ * This program is free software; you can redistribute it and/or modify
|
|
|
+ * it under the terms of the GNU General Public License version 2 as
|
|
|
+ * published by the Free Software Foundation.
|
|
|
+ *
|
|
|
+ */
|
|
|
+#include <linux/err.h>
|
|
|
+#include <linux/gpio.h>
|
|
|
+#include <linux/gpio/consumer.h>
|
|
|
+#include <linux/kernel.h>
|
|
|
+#include <linux/leds.h>
|
|
|
+#include <linux/module.h>
|
|
|
+#include <linux/of.h>
|
|
|
+#include <linux/platform_device.h>
|
|
|
+#include <linux/property.h>
|
|
|
+#include <linux/slab.h>
|
|
|
+#include <linux/delay.h>
|
|
|
+
|
|
|
+struct gpio_led_data {
|
|
|
+ struct led_classdev cdev;
|
|
|
+ struct gpio_desc *gpiod;
|
|
|
+ u8 can_sleep;
|
|
|
+ u8 blinking;
|
|
|
+ gpio_blink_set_t platform_gpio_blink_set;
|
|
|
+};
|
|
|
+
|
|
|
+static inline struct gpio_led_data *
|
|
|
+ cdev_to_gpio_led_data(struct led_classdev *led_cdev)
|
|
|
+{
|
|
|
+ return container_of(led_cdev, struct gpio_led_data, cdev);
|
|
|
+}
|
|
|
+
|
|
|
+static void gpio_led_set(struct led_classdev *led_cdev,
|
|
|
+ enum led_brightness value)
|
|
|
+{
|
|
|
+ struct gpio_led_data *led_dat = cdev_to_gpio_led_data(led_cdev);
|
|
|
+ int level;
|
|
|
+
|
|
|
+ if (value == LED_OFF)
|
|
|
+ level = 0;
|
|
|
+ else
|
|
|
+ level = 1;
|
|
|
+
|
|
|
+ if (led_dat->blinking) {
|
|
|
+ led_dat->platform_gpio_blink_set(led_dat->gpiod, level,
|
|
|
+ NULL, NULL);
|
|
|
+ led_dat->blinking = 0;
|
|
|
+ } else {
|
|
|
+ if (led_dat->can_sleep)
|
|
|
+ gpiod_set_value_cansleep(led_dat->gpiod, level);
|
|
|
+ else
|
|
|
+ gpiod_set_value(led_dat->gpiod, level);
|
|
|
+ }
|
|
|
+}
|
|
|
+
|
|
|
+static int gpio_led_set_blocking(struct led_classdev *led_cdev,
|
|
|
+ enum led_brightness value)
|
|
|
+{
|
|
|
+ gpio_led_set(led_cdev, value);
|
|
|
+ return 0;
|
|
|
+}
|
|
|
+
|
|
|
+static int gpio_blink_set(struct led_classdev *led_cdev,
|
|
|
+ unsigned long *delay_on, unsigned long *delay_off)
|
|
|
+{
|
|
|
+ struct gpio_led_data *led_dat = cdev_to_gpio_led_data(led_cdev);
|
|
|
+
|
|
|
+ led_dat->blinking = 1;
|
|
|
+ return led_dat->platform_gpio_blink_set(led_dat->gpiod, GPIO_LED_BLINK,
|
|
|
+ delay_on, delay_off);
|
|
|
+}
|
|
|
+
|
|
|
+static int create_gpio_led(const struct gpio_led *template,
|
|
|
+ struct gpio_led_data *led_dat, struct device *parent,
|
|
|
+ struct device_node *np, gpio_blink_set_t blink_set)
|
|
|
+{
|
|
|
+ int ret, state;
|
|
|
+
|
|
|
+ led_dat->gpiod = template->gpiod;
|
|
|
+ if (!led_dat->gpiod) {
|
|
|
+ /*
|
|
|
+ * This is the legacy code path for platform code that
|
|
|
+ * still uses GPIO numbers. Ultimately we would like to get
|
|
|
+ * rid of this block completely.
|
|
|
+ */
|
|
|
+ unsigned long flags = GPIOF_OUT_INIT_LOW;
|
|
|
+
|
|
|
+ /* skip leds that aren't available */
|
|
|
+ if (!gpio_is_valid(template->gpio)) {
|
|
|
+ dev_info(parent, "Skipping unavailable LED gpio %d (%s)\n",
|
|
|
+ template->gpio, template->name);
|
|
|
+ return 0;
|
|
|
+ }
|
|
|
+
|
|
|
+ if (template->active_low)
|
|
|
+ flags |= GPIOF_ACTIVE_LOW;
|
|
|
+
|
|
|
+ ret = devm_gpio_request_one(parent, template->gpio, flags,
|
|
|
+ template->name);
|
|
|
+ if (ret < 0)
|
|
|
+ return ret;
|
|
|
+
|
|
|
+ led_dat->gpiod = gpio_to_desc(template->gpio);
|
|
|
+ if (!led_dat->gpiod)
|
|
|
+ return -EINVAL;
|
|
|
+ }
|
|
|
+
|
|
|
+ led_dat->cdev.name = template->name;
|
|
|
+ led_dat->cdev.default_trigger = template->default_trigger;
|
|
|
+ led_dat->can_sleep = gpiod_cansleep(led_dat->gpiod);
|
|
|
+ if (!led_dat->can_sleep)
|
|
|
+ led_dat->cdev.brightness_set = gpio_led_set;
|
|
|
+ else
|
|
|
+ led_dat->cdev.brightness_set_blocking = gpio_led_set_blocking;
|
|
|
+ led_dat->blinking = 0;
|
|
|
+ if (blink_set) {
|
|
|
+ led_dat->platform_gpio_blink_set = blink_set;
|
|
|
+ led_dat->cdev.blink_set = gpio_blink_set;
|
|
|
+ }
|
|
|
+ if (template->default_state == LEDS_GPIO_DEFSTATE_KEEP) {
|
|
|
+ state = gpiod_get_value_cansleep(led_dat->gpiod);
|
|
|
+ if (state < 0)
|
|
|
+ return state;
|
|
|
+ } else {
|
|
|
+ state = (template->default_state == LEDS_GPIO_DEFSTATE_ON);
|
|
|
+ }
|
|
|
+ led_dat->cdev.brightness = state ? LED_FULL : LED_OFF;
|
|
|
+ if (!template->retain_state_suspended)
|
|
|
+ led_dat->cdev.flags |= LED_CORE_SUSPENDRESUME;
|
|
|
+ if (template->panic_indicator)
|
|
|
+ led_dat->cdev.flags |= LED_PANIC_INDICATOR;
|
|
|
+ if (template->retain_state_shutdown)
|
|
|
+ led_dat->cdev.flags |= LED_RETAIN_AT_SHUTDOWN;
|
|
|
+
|
|
|
+ ret = gpiod_direction_output(led_dat->gpiod, state);
|
|
|
+ if (ret < 0)
|
|
|
+ return ret;
|
|
|
+
|
|
|
+ //delay trigger,wucaicheng,1378913492@qq.com,20230914
|
|
|
+ if (template->delay_reg > 0) {
|
|
|
+ msleep(template->delay_reg);
|
|
|
+ }
|
|
|
+
|
|
|
+ return devm_of_led_classdev_register(parent, np, &led_dat->cdev);
|
|
|
+}
|
|
|
+
|
|
|
+struct gpio_leds_priv {
|
|
|
+ int num_leds;
|
|
|
+ struct gpio_led_data leds[];
|
|
|
+};
|
|
|
+
|
|
|
+static inline int sizeof_gpio_leds_priv(int num_leds)
|
|
|
+{
|
|
|
+ return sizeof(struct gpio_leds_priv) +
|
|
|
+ (sizeof(struct gpio_led_data) * num_leds);
|
|
|
+}
|
|
|
+
|
|
|
+static struct gpio_leds_priv *gpio_leds_create(struct platform_device *pdev)
|
|
|
+{
|
|
|
+ struct device *dev = &pdev->dev;
|
|
|
+ struct fwnode_handle *child;
|
|
|
+ struct gpio_leds_priv *priv;
|
|
|
+ int count, ret;
|
|
|
+
|
|
|
+ count = device_get_child_node_count(dev);
|
|
|
+ if (!count)
|
|
|
+ return ERR_PTR(-ENODEV);
|
|
|
+
|
|
|
+ priv = devm_kzalloc(dev, sizeof_gpio_leds_priv(count), GFP_KERNEL);
|
|
|
+ if (!priv)
|
|
|
+ return ERR_PTR(-ENOMEM);
|
|
|
+
|
|
|
+ device_for_each_child_node(dev, child) {
|
|
|
+ struct gpio_led_data *led_dat = &priv->leds[priv->num_leds];
|
|
|
+ struct gpio_led led = {};
|
|
|
+ const char *state = NULL;
|
|
|
+ struct device_node *np = to_of_node(child);
|
|
|
+
|
|
|
+ ret = fwnode_property_read_string(child, "label", &led.name);
|
|
|
+ if (ret && IS_ENABLED(CONFIG_OF) && np)
|
|
|
+ led.name = np->name;
|
|
|
+ if (!led.name) {
|
|
|
+ fwnode_handle_put(child);
|
|
|
+ return ERR_PTR(-EINVAL);
|
|
|
+ }
|
|
|
+
|
|
|
+ led.gpiod = devm_fwnode_get_gpiod_from_child(dev, NULL, child,
|
|
|
+ GPIOD_ASIS,
|
|
|
+ led.name);
|
|
|
+ if (IS_ERR(led.gpiod)) {
|
|
|
+ fwnode_handle_put(child);
|
|
|
+ return ERR_CAST(led.gpiod);
|
|
|
+ }
|
|
|
+
|
|
|
+ fwnode_property_read_string(child, "linux,default-trigger",
|
|
|
+ &led.default_trigger);
|
|
|
+
|
|
|

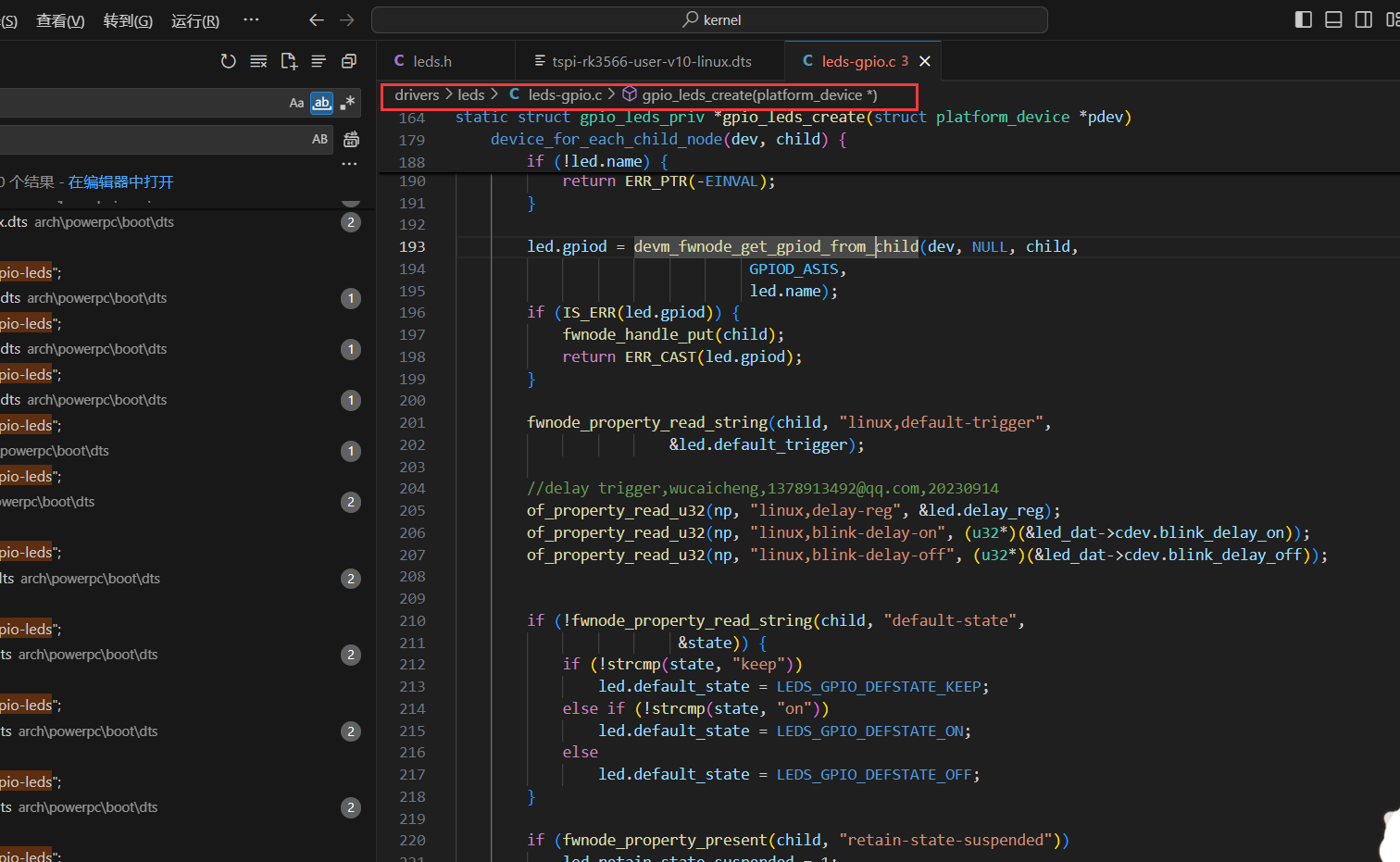

+ //delay trigger,wucaicheng,1378913492@qq.com,20230914
|
|
|
+ of_property_read_u32(np, "linux,delay-reg", &led.delay_reg);
|
|
|
+ of_property_read_u32(np, "linux,blink-delay-on", (u32*)(&led_dat->cdev.blink_delay_on));
|
|
|
+ of_property_read_u32(np, "linux,blink-delay-off", (u32*)(&led_dat->cdev.blink_delay_off));
|
|
|
+
|
|
|
+
|
|
|
+ if (!fwnode_property_read_string(child, "default-state",
|
|
|
+ &state)) {
|
|
|
+ if (!strcmp(state, "keep"))
|
|
|
+ led.default_state = LEDS_GPIO_DEFSTATE_KEEP;
|
|
|
+ else if (!strcmp(state, "on"))
|
|
|
+ led.default_state = LEDS_GPIO_DEFSTATE_ON;
|
|
|
+ else
|
|
|
+ led.default_state = LEDS_GPIO_DEFSTATE_OFF;
|
|
|
+ }
|
|
|
+
|
|
|
+ if (fwnode_property_present(child, "retain-state-suspended"))
|
|
|
+ led.retain_state_suspended = 1;
|
|
|
+ if (fwnode_property_present(child, "retain-state-shutdown"))
|
|
|
+ led.retain_state_shutdown = 1;
|
|
|
+ if (fwnode_property_present(child, "panic-indicator"))
|
|
|
+ led.panic_indicator = 1;
|
|
|
+
|
|
|
+ ret = create_gpio_led(&led, led_dat, dev, np, NULL);
|
|
|
+ if (ret < 0) {
|
|
|
+ fwnode_handle_put(child);
|
|
|
+ return ERR_PTR(ret);
|
|
|
+ }
|
|
|
+ led_dat->cdev.dev->of_node = np;
|
|
|
+ priv->num_leds++;
|
|
|
+ }
|
|
|
+
|
|
|
+ return priv;
|
|
|
+}
|
|
|
+
|
|
|

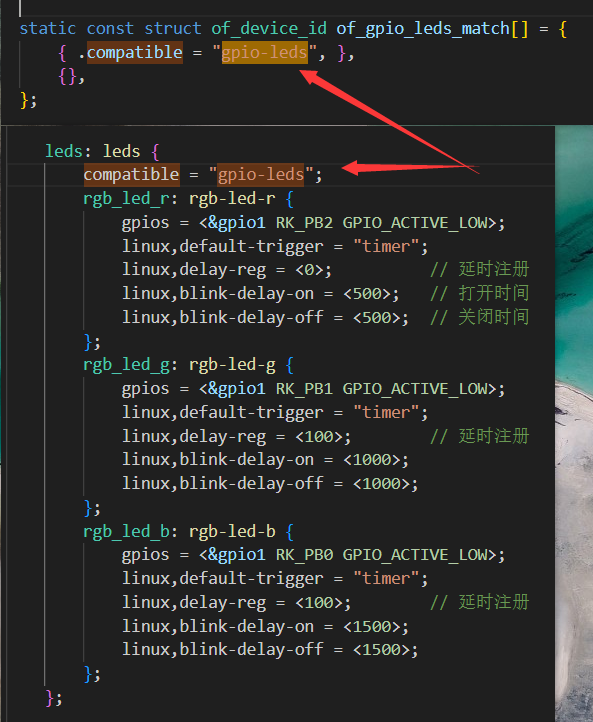

+static const struct of_device_id of_gpio_leds_match[] = {
|
|
|
+ { .compatible = "gpio-leds", },
|
|
|
+ {},
|
|
|
+};
|
|
|
+
|
|
|
+MODULE_DEVICE_TABLE(of, of_gpio_leds_match);
|
|
|
+
|
|
|
+static int gpio_led_probe(struct platform_device *pdev)
|
|
|
+{
|
|
|
+ struct gpio_led_platform_data *pdata = dev_get_platdata(&pdev->dev);
|
|
|
+ struct gpio_leds_priv *priv;
|
|
|
+ int i, ret = 0;
|
|
|
+
|
|
|
+ if (pdata && pdata->num_leds) {
|
|
|
+ priv = devm_kzalloc(&pdev->dev,
|
|
|
+ sizeof_gpio_leds_priv(pdata->num_leds),
|
|
|
+ GFP_KERNEL);
|
|
|
+ if (!priv)
|
|
|
+ return -ENOMEM;
|
|
|
+
|
|
|
+ priv->num_leds = pdata->num_leds;
|
|
|
+ for (i = 0; i < priv->num_leds; i++) {
|
|
|
+ ret = create_gpio_led(&pdata->leds[i], &priv->leds[i],
|
|
|
+ &pdev->dev, NULL,
|
|
|
+ pdata->gpio_blink_set);
|
|
|
+ if (ret < 0)
|
|
|
+ return ret;
|
|
|
+ }
|
|
|
+ } else {
|
|
|
+ priv = gpio_leds_create(pdev);
|
|
|
+ if (IS_ERR(priv))
|
|
|
+ return PTR_ERR(priv);
|
|
|
+ }
|
|
|
+
|
|
|
+ platform_set_drvdata(pdev, priv);
|
|
|
+
|
|
|
+ return 0;
|
|
|
+}
|
|
|
+
|
|
|
+static void gpio_led_shutdown(struct platform_device *pdev)
|
|
|
+{
|
|
|
+ struct gpio_leds_priv *priv = platform_get_drvdata(pdev);
|
|
|
+ int i;
|
|
|
+
|
|
|
+ for (i = 0; i < priv->num_leds; i++) {
|
|
|
+ struct gpio_led_data *led = &priv->leds[i];
|
|
|
+
|
|
|
+ if (!(led->cdev.flags & LED_RETAIN_AT_SHUTDOWN))
|
|
|
+ gpio_led_set(&led->cdev, LED_OFF);
|
|
|
+ }
|
|
|
+}
|
|
|
+
|
|
|
+static struct platform_driver gpio_led_driver = {
|
|
|
+ .probe = gpio_led_probe,
|
|
|
+ .shutdown = gpio_led_shutdown,
|
|
|
+ .driver = {
|
|
|
+ .name = "leds-gpio",
|
|
|
+ .of_match_table = of_gpio_leds_match,
|
|
|
+ },
|
|
|
+};
|
|
|
+
|
|
|
+module_platform_driver(gpio_led_driver);
|
|
|
+
|
|
|
+MODULE_AUTHOR("Raphael Assenat <raph@8d.com>, Trent Piepho <tpiepho@freescale.com>");
|
|
|
+MODULE_DESCRIPTION("GPIO LED driver");
|
|
|
+MODULE_LICENSE("GPL");
|
|
|
+MODULE_ALIAS("platform:leds-gpio");
|
